Bore Master Kits

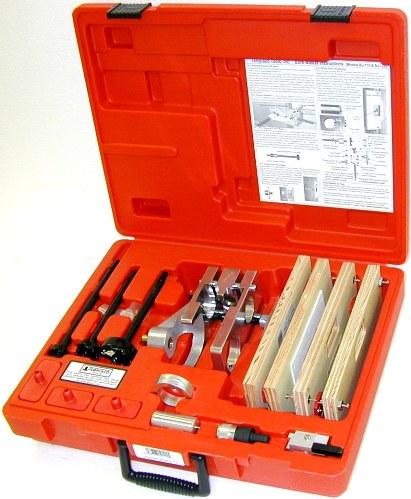

Bore Master Lock Installation Kit BJ-115-C3 Bore Master Lock Installation Kit BJ-115-C3

Click any image for a larger version

Bore Master Lock Installation Kit BJ-115-C3 $499.00
Details: Bore Master Lock Installation Kit, with Carbide Spur Bits

This is the original Templaco Bore Master Lock Installation Kit, finish machined and assembled here in the USA for over 40 years, not a cheap knock off. Our very best and most complete lock installation kit for cylindrical locksets with three carbide tipped spur bits included. Always insist on Carbide Tipped Spur Bits when you purchase any lock installation kit from us or the competition. This kit is supplied with our best Templaco door boring fixture that is adjustable from 2-3/8” to 2-3/4” backset positions and for wood doors as thin as 1” to 2-3/8” thick, (for thicker doors up to 3 inches please contact us for the added cost). Kit includes three Carbide Tipped Spur Bits for boring the 1” edge-bore and 2-1/8” cross-bore and the 1-1/2” cross-bore for dead bolts. Also included are two complete lock and strike router template kits, Stock Number LS-166A & LS-171B which will provide for the latch and strike plate mortising for doors and jambs of most all of the popular cylindrical locksets using your router. To complete the kit we include a heavy duty 1/2” hex drive quick-release drill adapter to chuck the spur bits into your drill motor, a 1-1/2” reducer ring to use with the 1-1/2” spur bit, aluminum latch bore strike center marker with a stainless steel point and a spring loaded corner chisel for squaring out the mortise corners for both strike plates and hinges when installing square cornered hardware. This complete kit is enclosed in a rugged red plastic case with strong latches. (note: see TG-1, CB-1 or CB-4) for the router bits and template guides needed to use the templates in this kit. Remember these kits are assembled here in Southern California and when you need parts or service on your Templaco Bore Master, we’re right here and we’ve been doing this for 40 years.

Stock Number: BJ-115-C3
