Soss Hinge

101 Soss Hinge Router Template

Click the image for a larger version

101 Soss Hinge Router Template $40.00
Details: Soss Model 101 Hinge Template

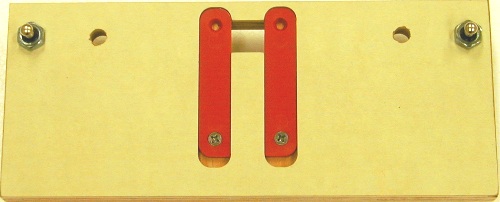

Produce perfect mortise pockets for the 'Soss Invisible Hinge'. Finish size is 3/8” x 1-11/16”. Because of the small size of the finish mortise you will use a 3/8” diameter router bit with this template. You will still use the standard 5/8” outside diameter router template guide. This hinge requires a two-step mortise, a deep mortise in the center and a shallow or finish mortise for the finish depth. Set your router for the deep center pocket and make your cut. Remove the two red 'block-off' tabs that divide the pocket on the template, set your router for the shallow or finish cut, complete the mortise and you're finished. Supplied with two nail assemblies as shown and there are two door and jamb thickness adjustment stops on the underside of the tool. This router template will work on both doors and jambs. Move the template to each position to complete your mortises on the jamb and door or cabinet. The template is supplied with an extra set of nail holes in case you need to shorten the template for short cabinets.

Stock Number: S-101-1

Support and Help Files: Soss-101-1.pdf
